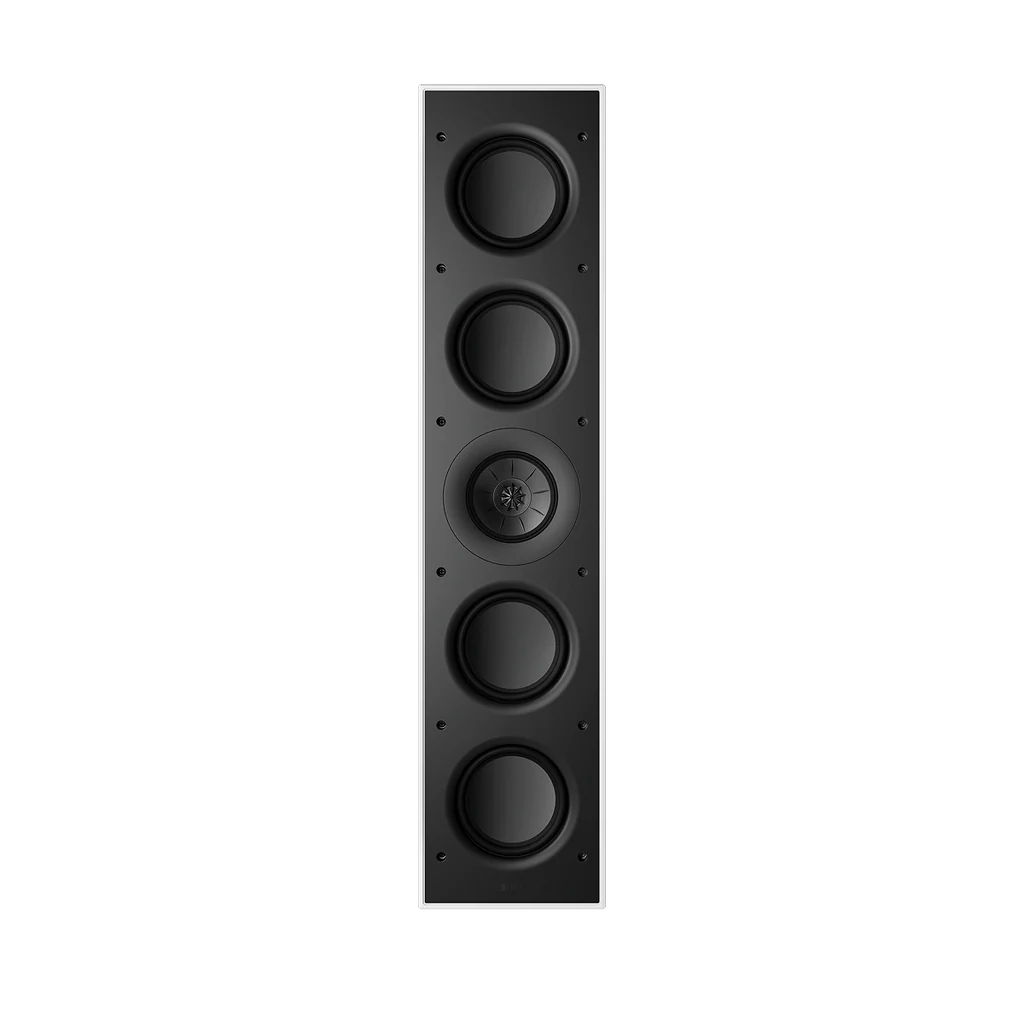

The KEF Ci5120QLM-THX is a high-performance in-wall loudspeaker designed for premium custom installation home theaters. It belongs to KEF’s Ci-Q series and carries THX Certified Ultra status, meaning it is engineered to deliver reference-level cinematic output with controlled distortion and consistent performance in medium to large listening environments.

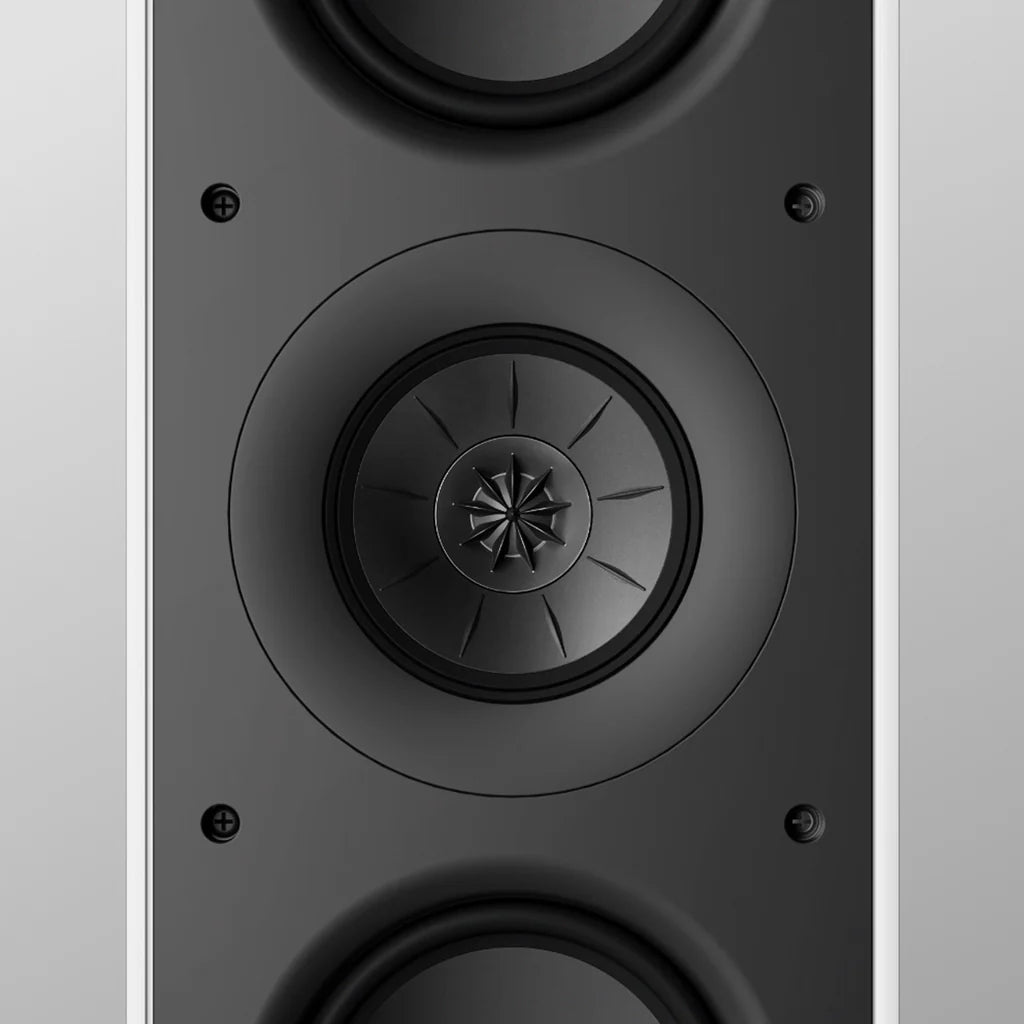

At its core, it uses KEF’s 12th-generation Uni-Q driver array, which places the tweeter at the acoustic center of the midrange driver. This point-source configuration improves imaging precision and ensures a wide, even sound dispersion across the listening area, making it highly effective for multi-seat theater setups.
A key feature of this model is the integration of Metamaterial Absorption Technology (MAT), which absorbs a large portion of unwanted high-frequency resonance inside the driver. This results in cleaner treble reproduction, improved detail retrieval, and a more natural overall tonal balance, especially at higher listening levels.
The Ci5120QLM-THX is also built for dynamic headroom, using four dedicated 120 mm woofers to deliver strong low-frequency output without distortion. Combined with its THX Ultra certification, it is intended to function as a main LCR speaker in fully concealed high-end cinema systems where both output capability and acoustic accuracy are critical.
- Speaker Type: Reference In-Wall Architectural Speaker
- Certification: THX Certified Select
- Driver Configuration: 3-Way Design
- Tweeter: 1" (25mm) Aluminum Dome Tweeter
- Midrange: 5" (125mm) Uni-Q® Driver Array
- Bass Drivers: 2 x 6.5" (160mm) High-Output Woofers
- Frequency Response: 40Hz–28kHz
- Sensitivity: 90dB
- Nominal Impedance: 4 Ohms
- Paintable Magnetic Grille for Seamless Integration
