The Chord Electronics DAVE is the company’s flagship digital-to-analog converter, designed to deliver reference-level performance for the most demanding audio systems. Combining an advanced FPGA-based architecture, proprietary digital processing technologies, and an integrated preamplifier and headphone amplifier, DAVE is engineered to reproduce music with extraordinary realism, precision, and transparency.
At the heart of DAVE is Chord Electronics’ custom-programmed FPGA platform, developed to perform digital conversion with a level of accuracy beyond the limitations of conventional DAC chipsets. Utilizing the company’s proprietary WTA filtering technology and Pulse Array DAC architecture, DAVE is capable of revealing exceptional levels of detail, timing accuracy, and spatial information while maintaining a natural and highly engaging musical presentation.
Designed for use in both speaker-based and headphone systems, DAVE incorporates a reference-quality headphone amplifier and a highly sophisticated digital preamplifier stage. Balanced XLR and RCA outputs provide seamless integration with premium power amplifiers and active loudspeakers, while extensive digital connectivity ensures compatibility with a wide range of high-resolution audio sources.
Whether operating as a standalone DAC or paired with the Chord Electronics Hugo M Scaler for even greater performance, DAVE represents the pinnacle of the company’s digital audio engineering. Its combination of advanced technology, exceptional versatility, and uncompromising sound quality has established it as one of the most respected high-end digital components available today.
- Component Type: Reference DAC, Preamplifier, and Headphone Amplifier
- DAC Architecture: Custom FPGA-Based DAC
- FPGA: Xilinx Spartan 6 FPGA
- WTA Filter: Proprietary Ultra-Long Tap Filter
- Maximum Resolution: Up to 32-bit/768kHz PCM
- DSD Support: Up to DSD512
- Inputs: USB, Dual BNC, Optical, and AES/EBU

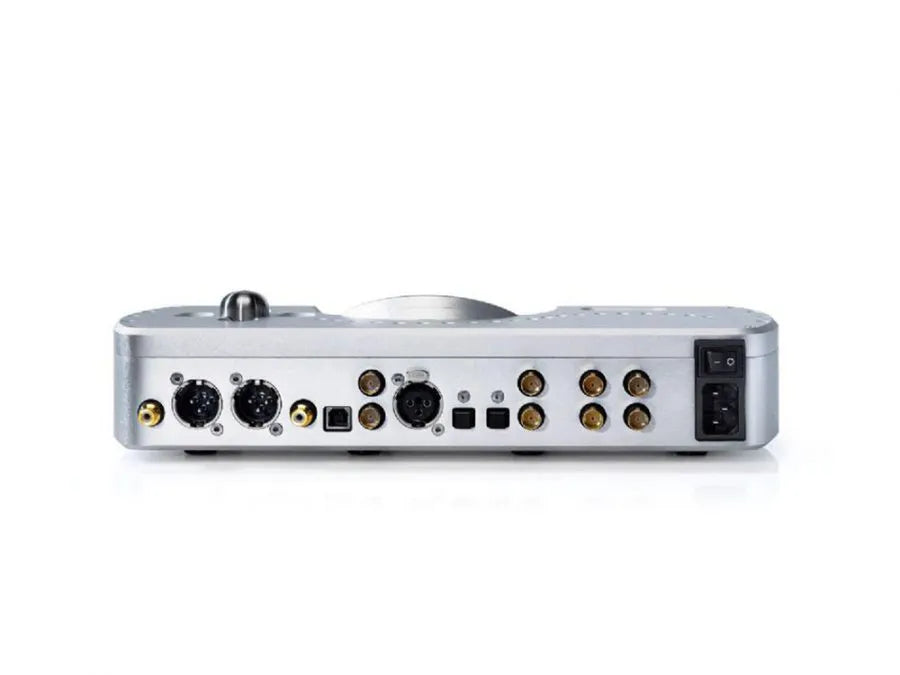

- Outputs: Balanced XLR, RCA, 6.35mm Headphone Outputs
- Digital Volume Control
- Reference-Grade Headphone Amplifier
- Compatible with Hugo M Scaler
- Precision-Machined Aluminum Chassis
